overview

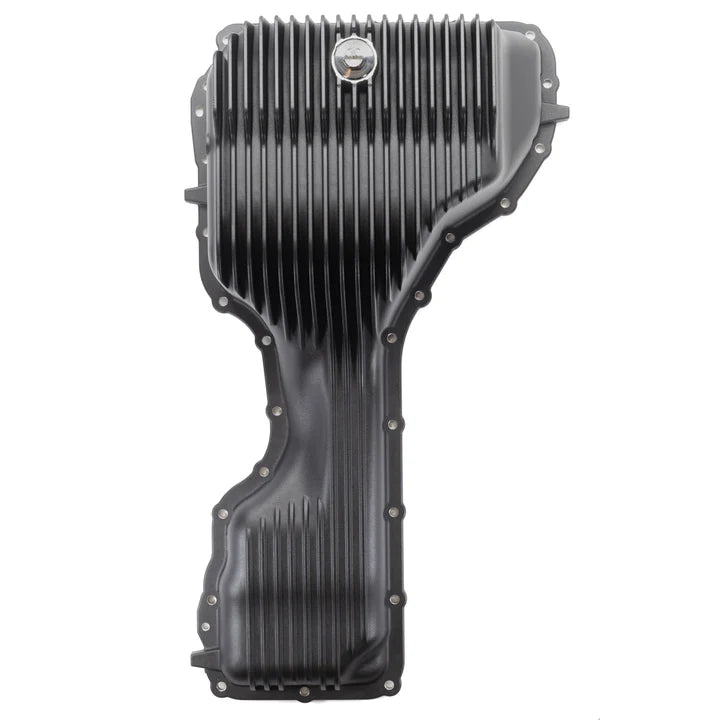

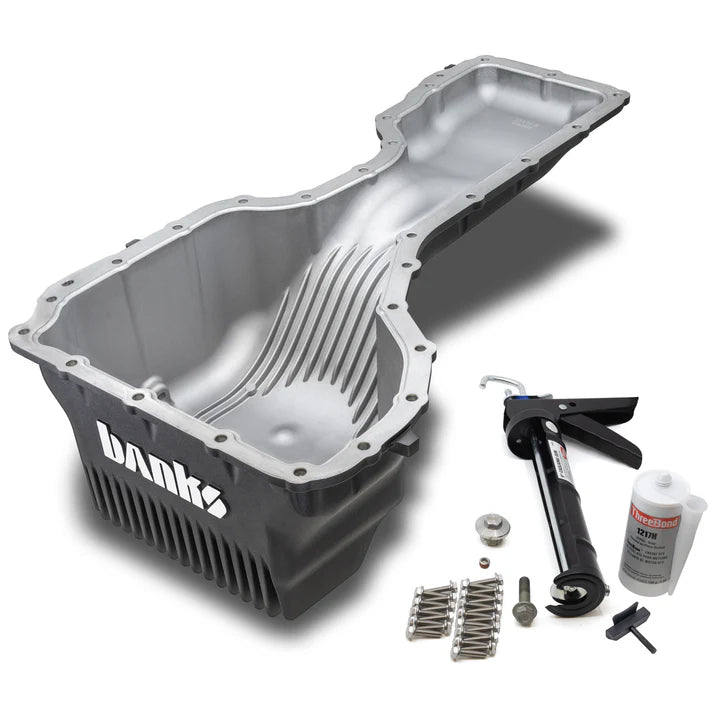

Banks CoolRunner Oil Pan utilizes technology from our military engine program to extend oil life. The system rejects more heat and reduces aeration better than stock and all competitors. Two additional quarts of oil and Banks FlowThru Fins aid in cooling. Unlike stock, the CoolRunner allows all fluid to drain during oil changes.

Key Features

• Engineered for the best heat rejection, improved oil flow and full oil drainage
• Adds 2 additional quarts of oil capacity

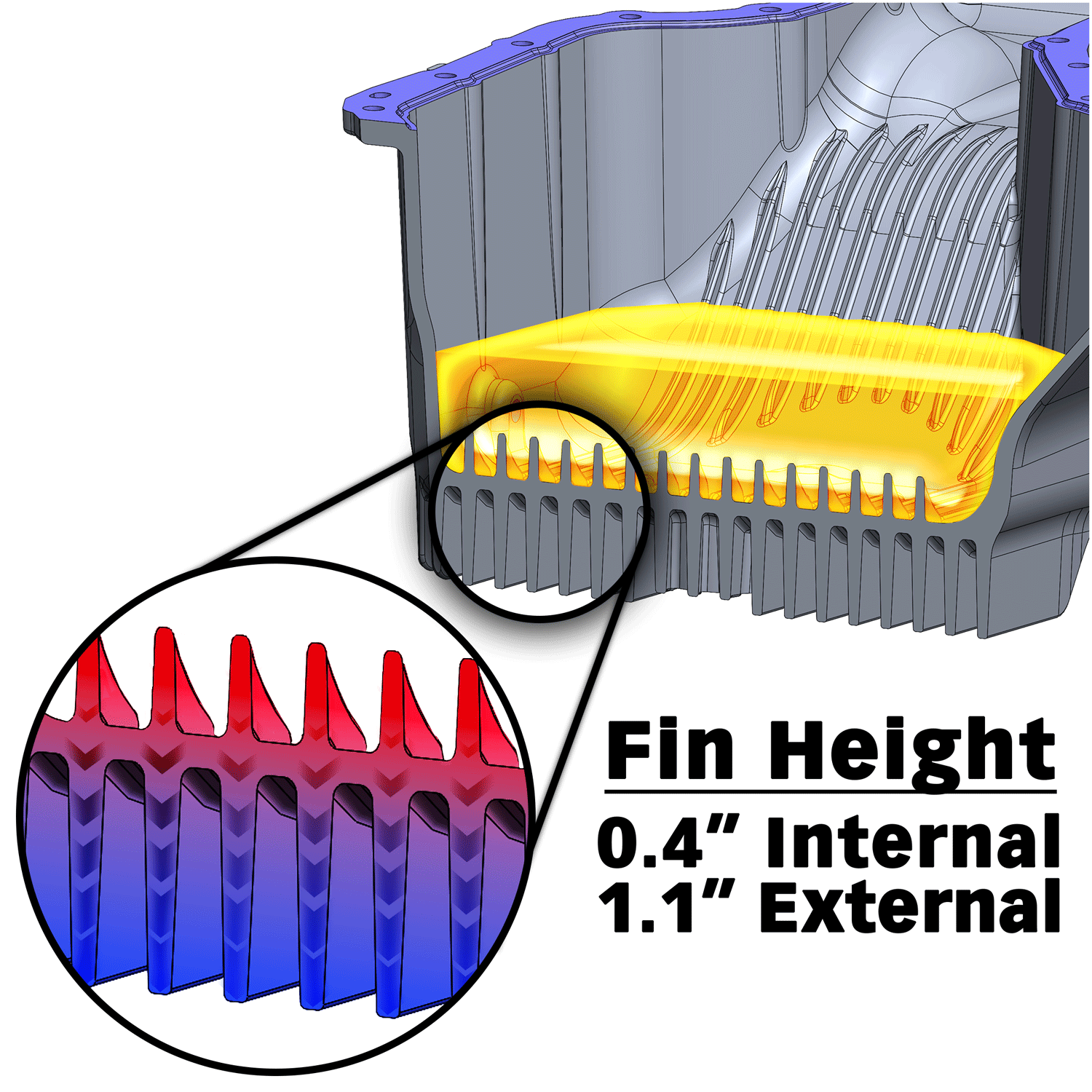

• FlowThru Fins ^TM efficiently transfer heat through the cover
• 86.1% more cooling surface area than stock
• Does not hang lower than factory front cross member
• Unlike stock, allows full engine oil drainage


Fluid Dynamics

• Internal cooling fins run inline with the drain port with streamlined passageways
• Anti-cavitation dimple directly under oil pickup improves oil flow rate
• Downward-facing port eases oil change process
• Lower aeration means longer oil life


Technical Specs

• 1/8 NPT port for aux temp sensor

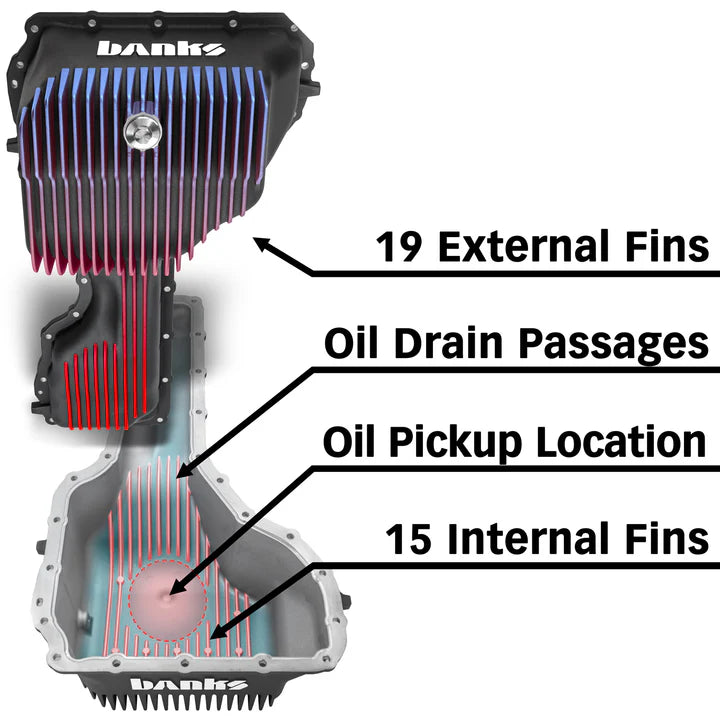

• External heat radiation fin count: 19
• Internal heat absorption fin count: 15
• External heat radiation surface area: 657 in²
• Internal heat absorption surface area: 387 in²
• Fasteners: 26 x stainless steel M6 flange hex bolts
• Material: A380 aluminum diecast with CNC machined surfaces


Oil service

• Heat resistant Ferrite Magnetic Drain Plug
• Fully drains oil pickup tube for quicker oil changes
• Banks recommends Amsoil 15W-40 Signature Series Max-Duty Synthetic Diesel Oil
• Adds 2.0 qts additional capacity(Check OEM Owners Manual)
