INTERIOR MOUNT OVERVIEW

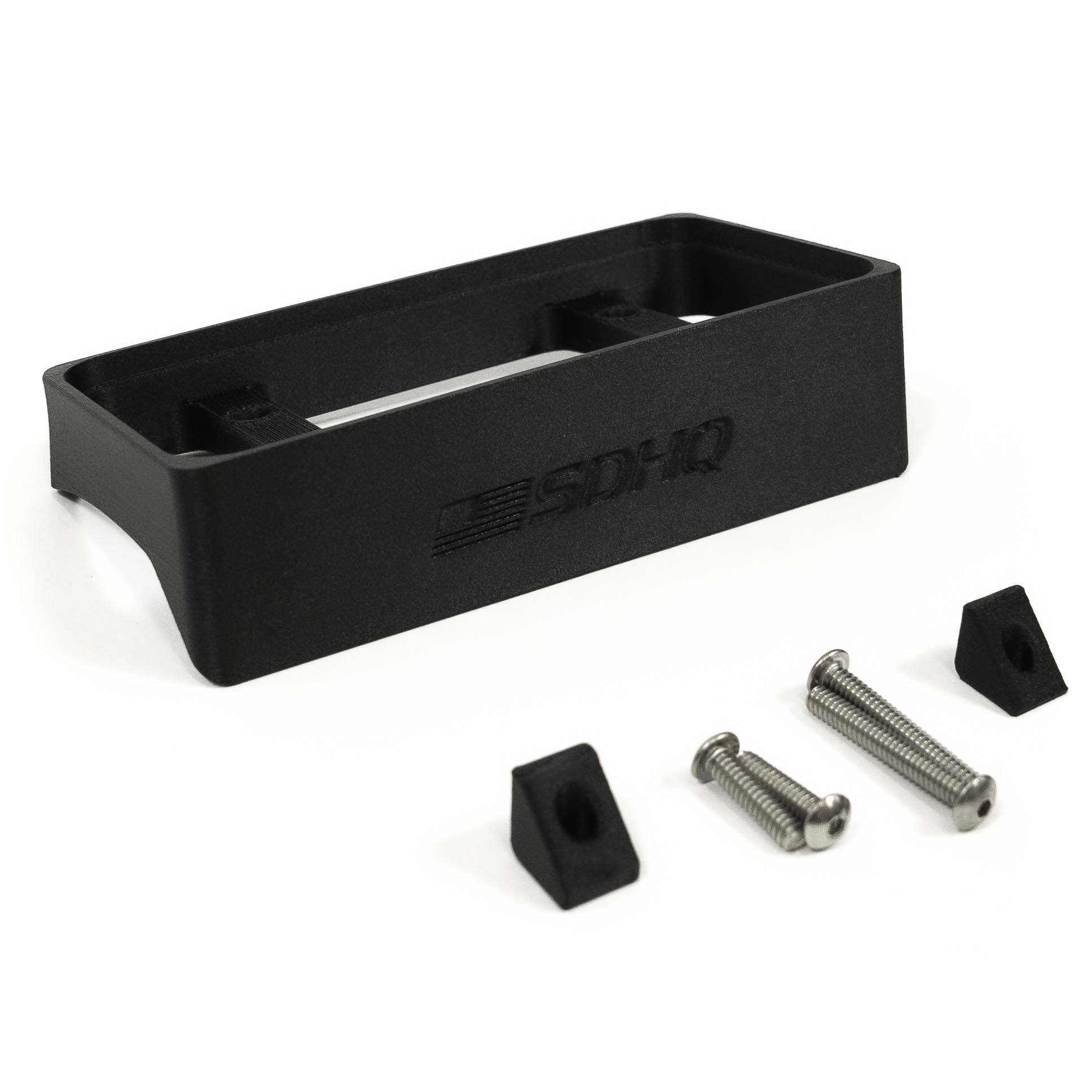

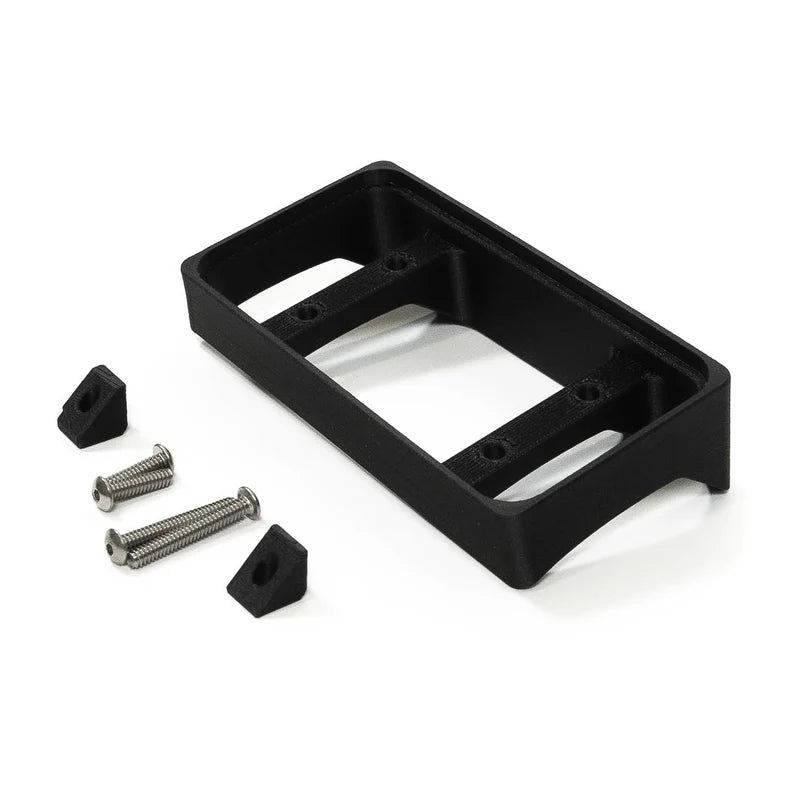

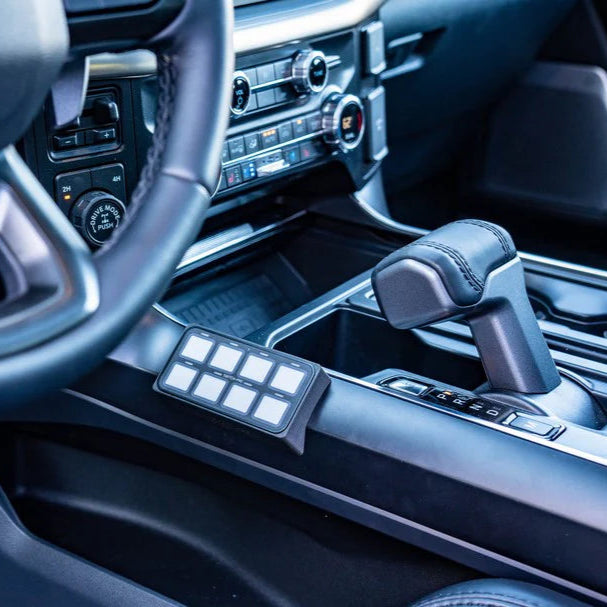

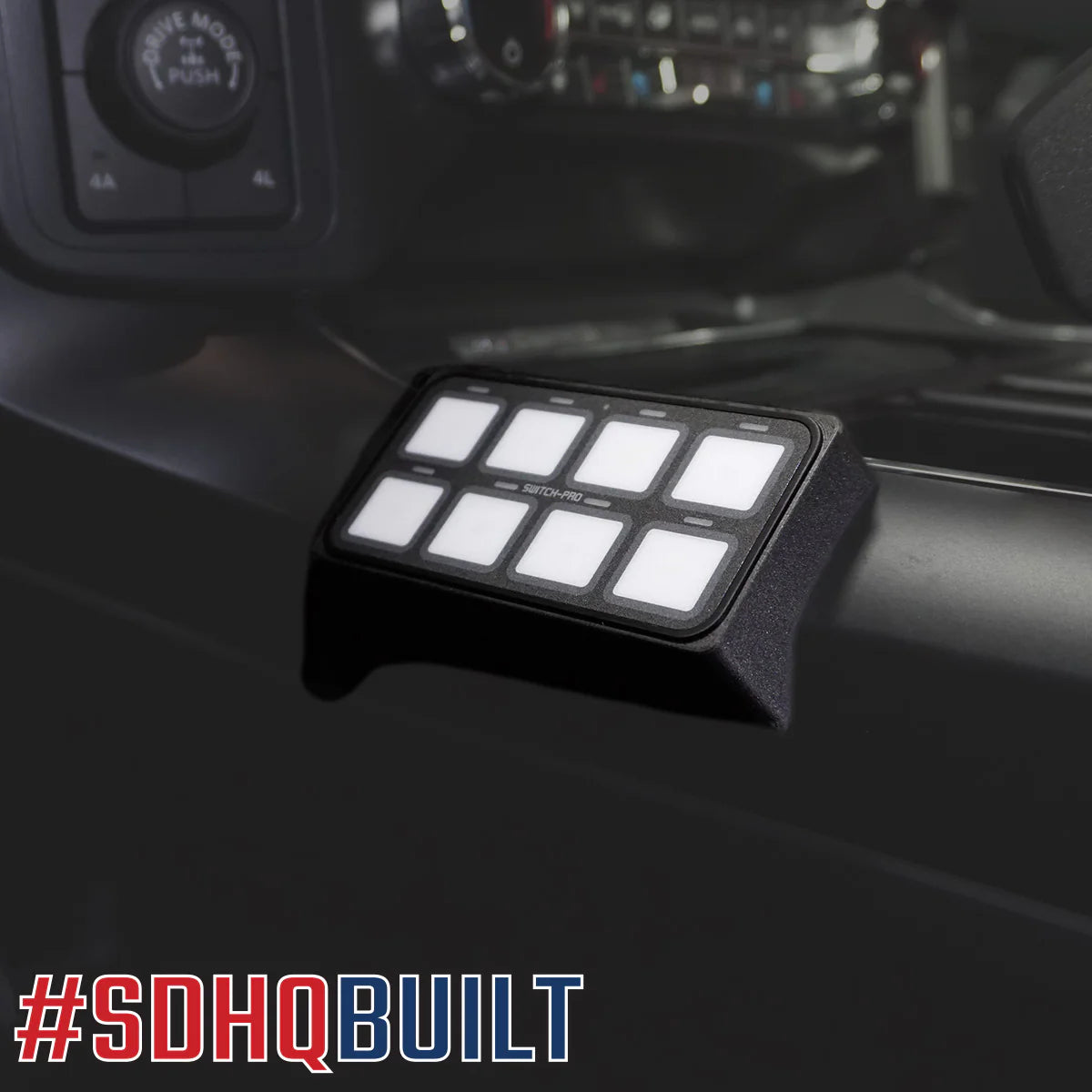

Our SDHQ Built Switch-Pros SP-9100 Flow-Through Center Console Keypad Mount for the 2021-Current Ford Raptor gives you the ability to mount the keypad component of your Switch-Pros SP-9100 on the driver's side on a 'flow through' center console with either column or console shifter.
This keypad mount is 3D printed from a high strength, rugged, and chemical resistant carbon-fiber filled nylon, giving our keypad mount a direct from the factory fitment and feel.
FITMENT DETAILS:
- VEHICLE FITMENT: 2021-Current Ford Raptor
- Fits 3rd Gen Ford Raptors with a ‘flow through’ center console and either column or console shifter
- SWITCH-PROS FITMENT: Switch-Pros SP-9100 Keypad Component (8 Switch Pane)
KEY FEATURES:

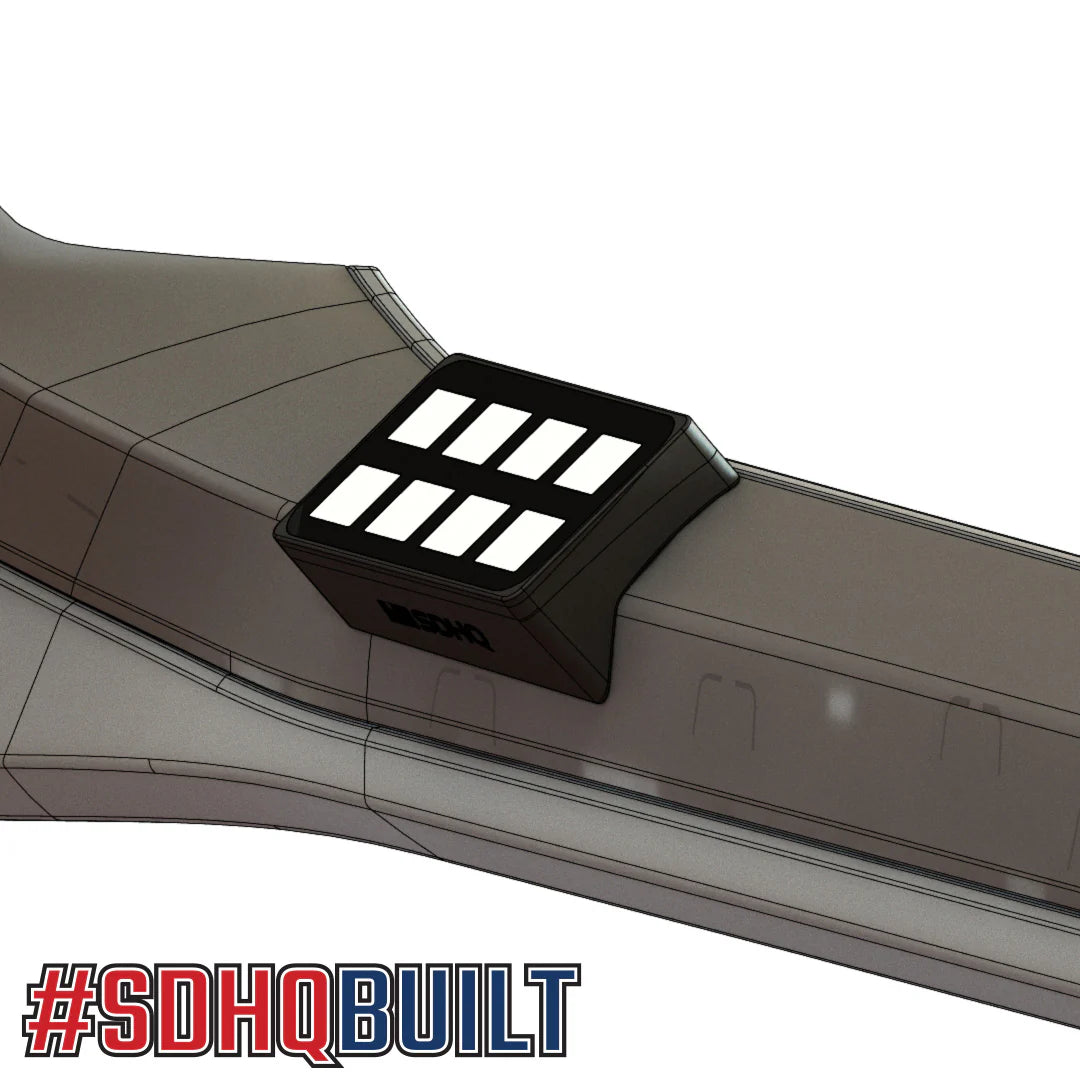

- 3D CAD designed from Ford models for precise fit with your Ford Raptor
- 3D printed from carbon-fiber filled nylon, a high strength, tough and chemical resistant material
- Uses SDHQ supplied hardware for secure mounting to panel
- Drilling is required for install
- Does not fit RCR Touch 8 Cover
SWITCH-PROS FITMENT:
- This mount is designed to work with the Switch-Pros SP-9100 (8 Keypad)
WHAT'S INCLUDED:

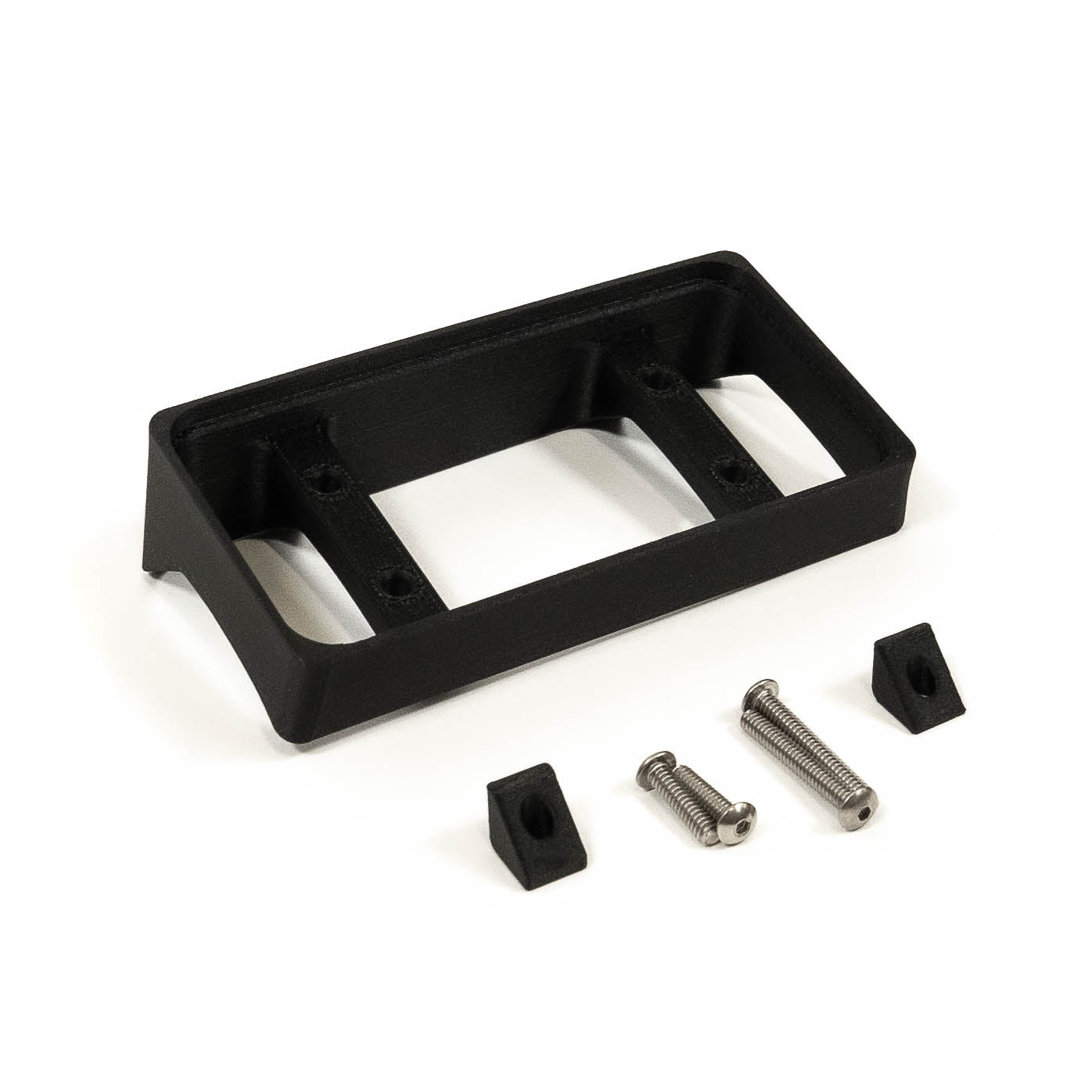

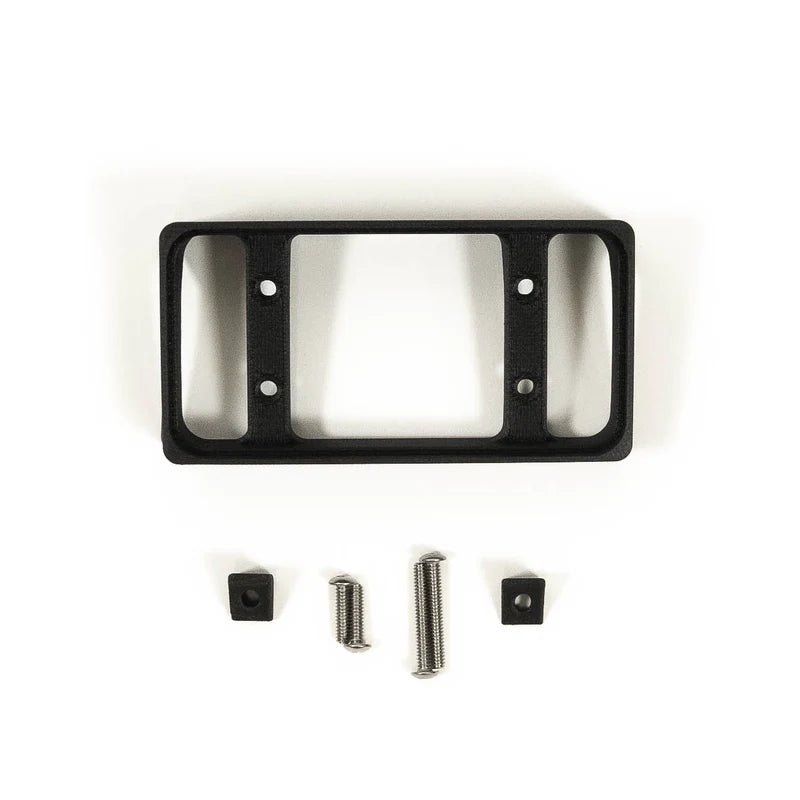

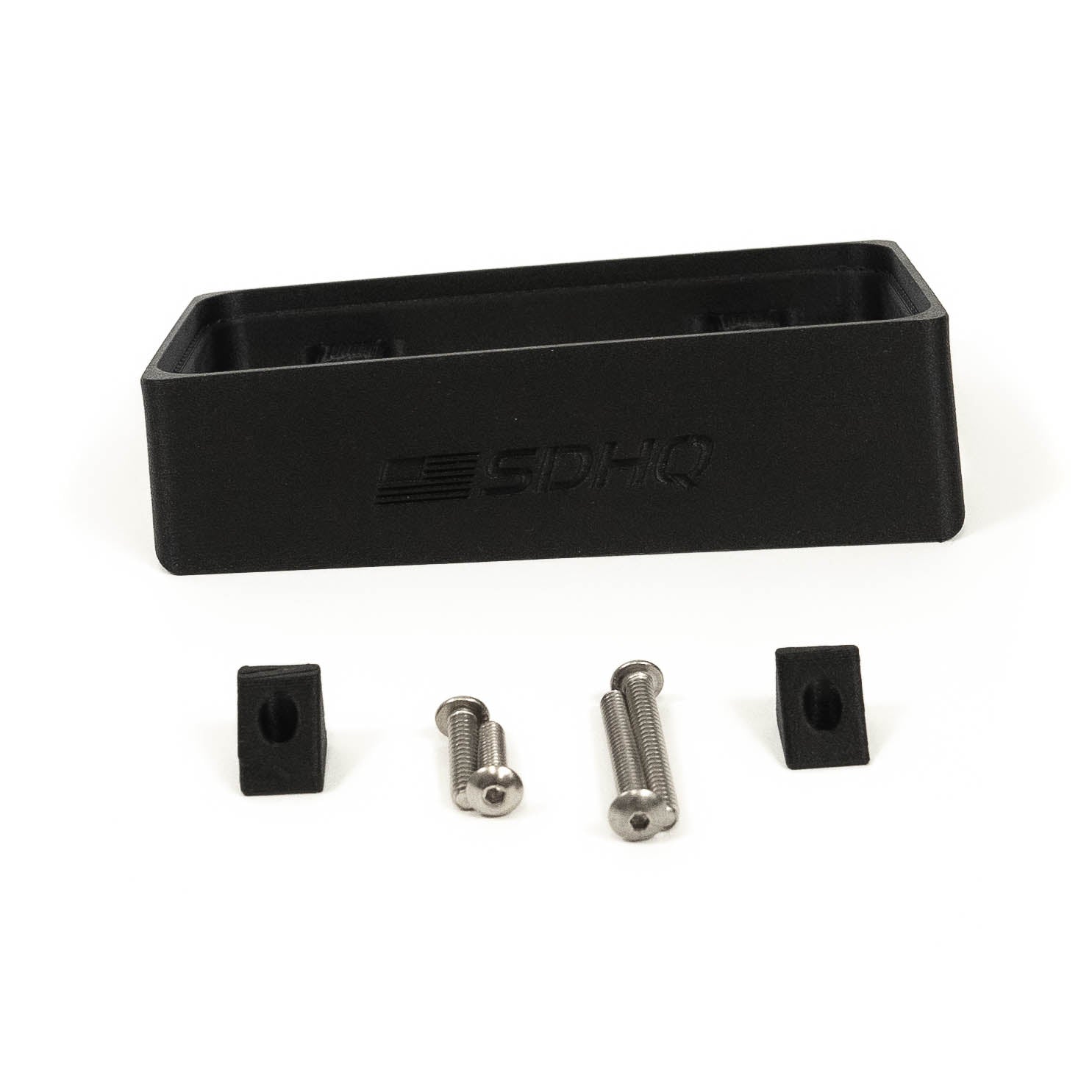

- (1) 3D Printed Switch-Pros SP-9100 Mount
- (1) SDHQ 3D Printed Backer
- (1) Hardware Package

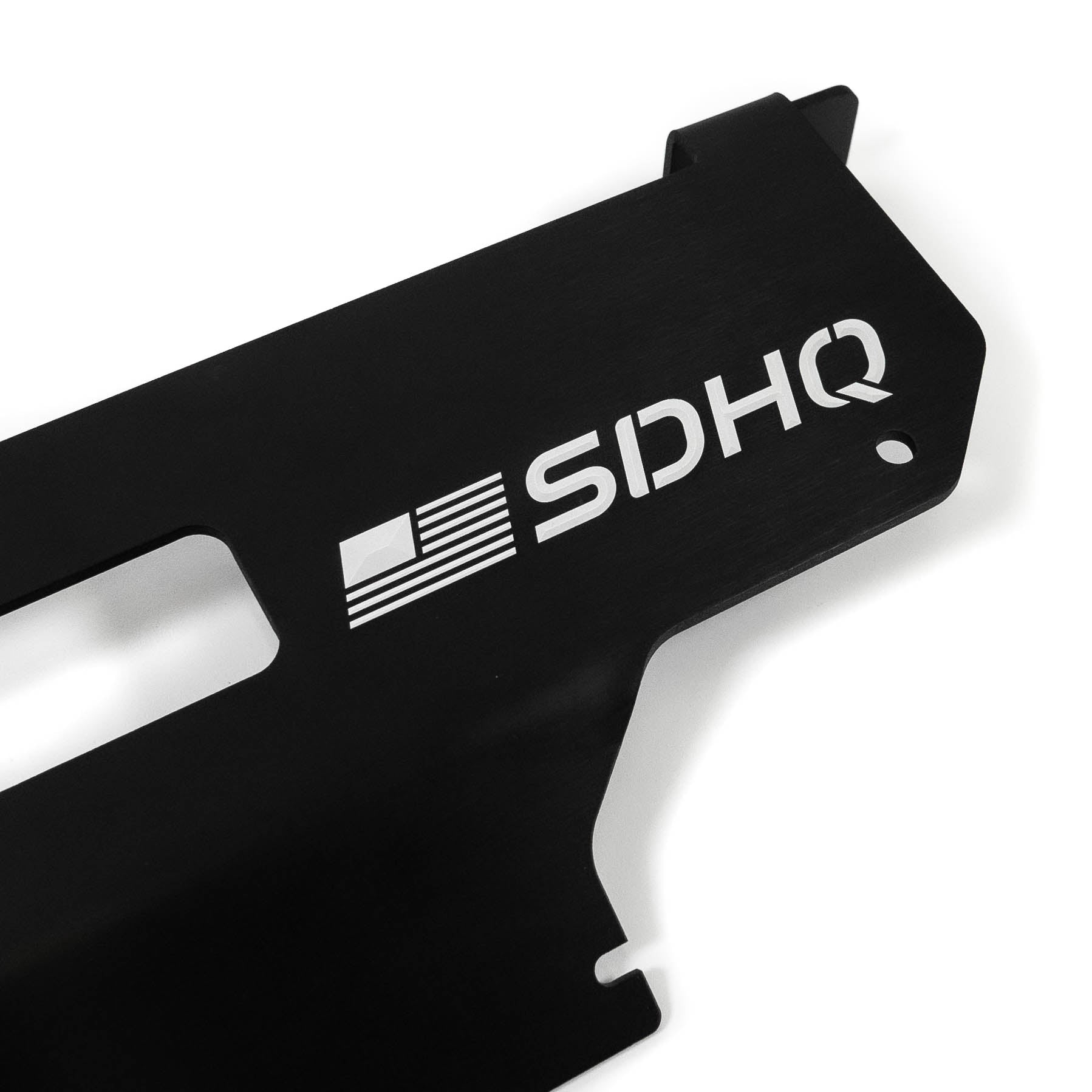

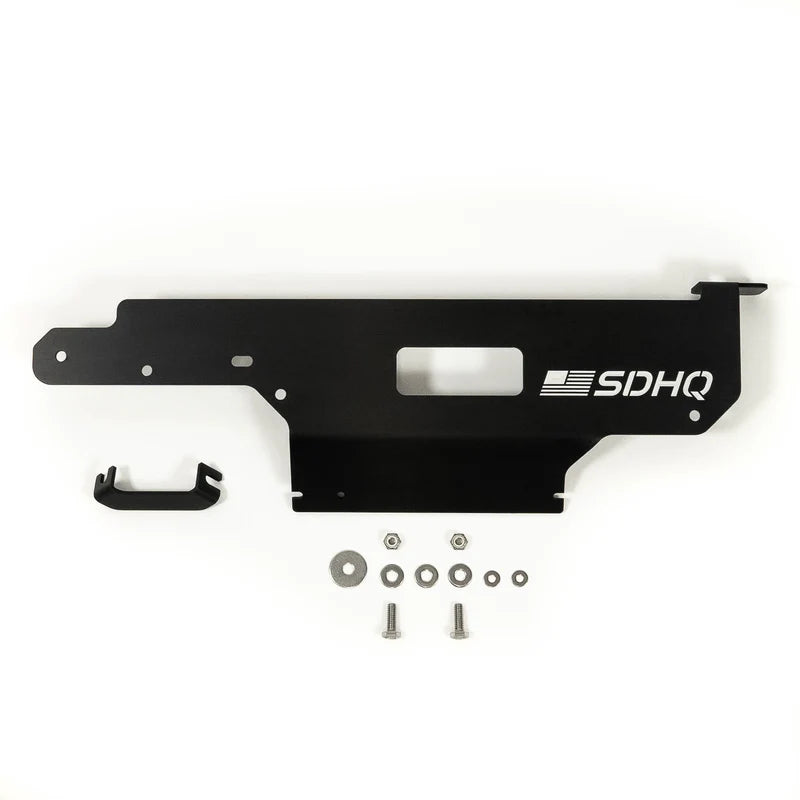

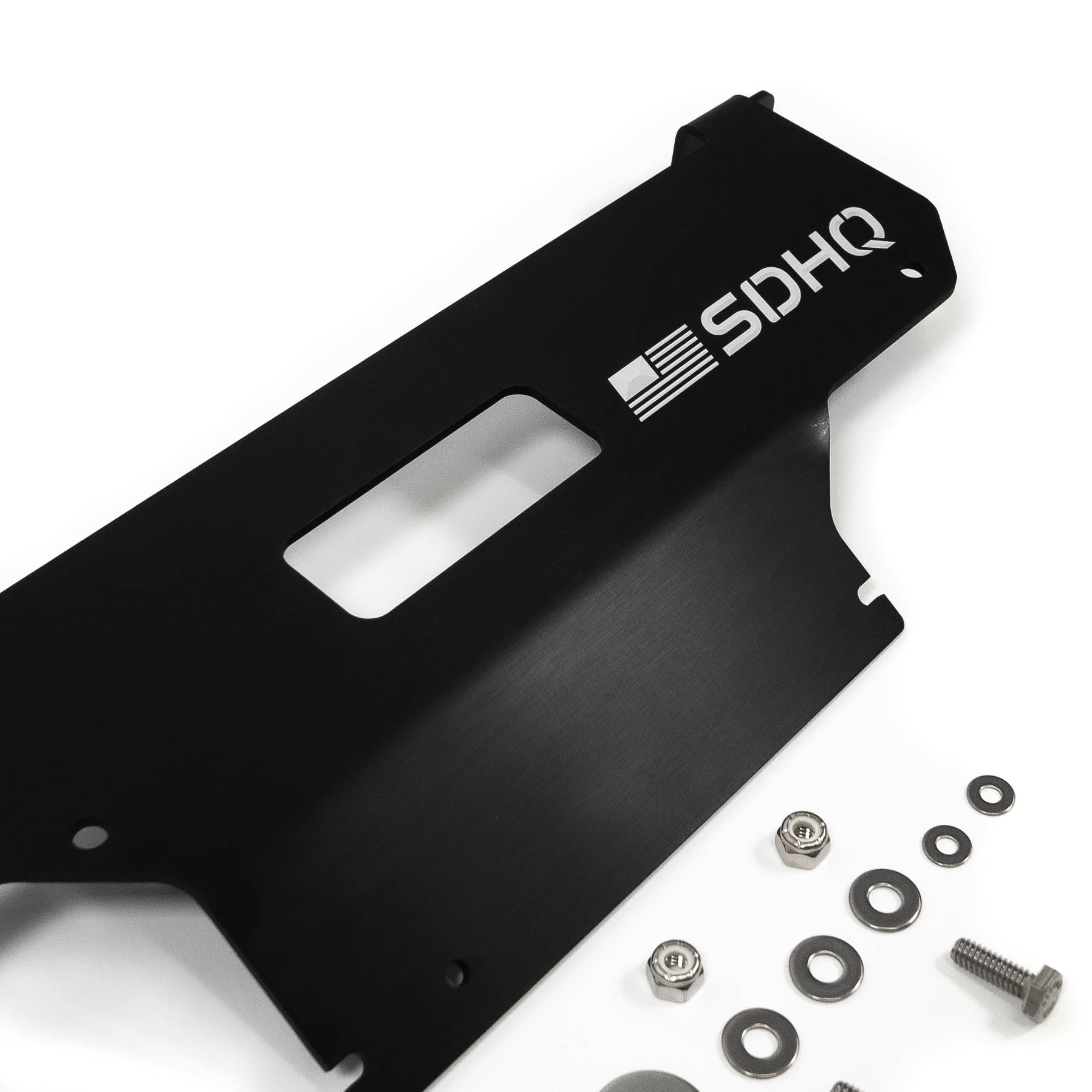

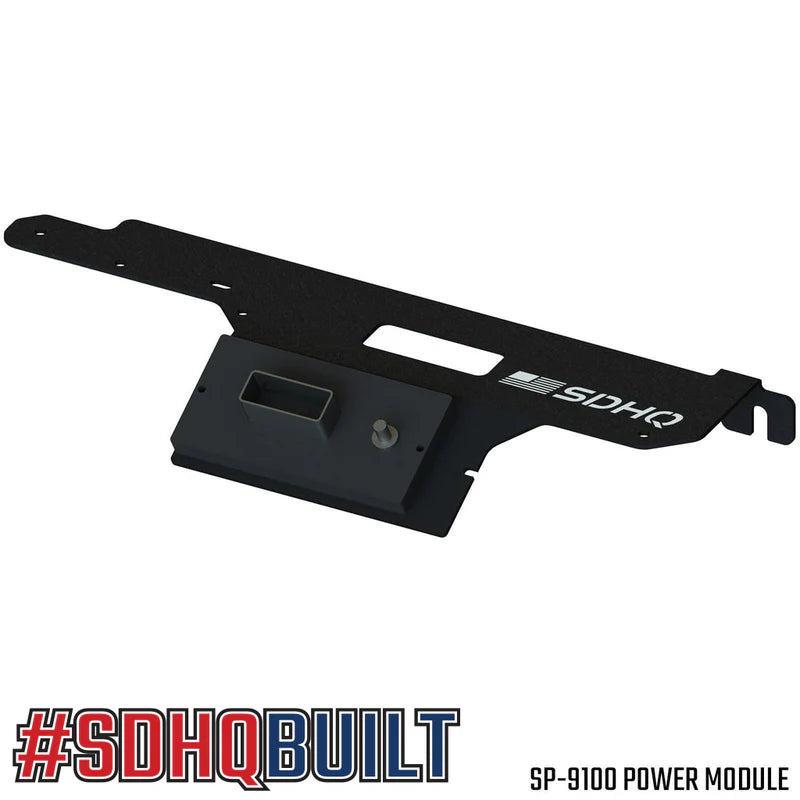

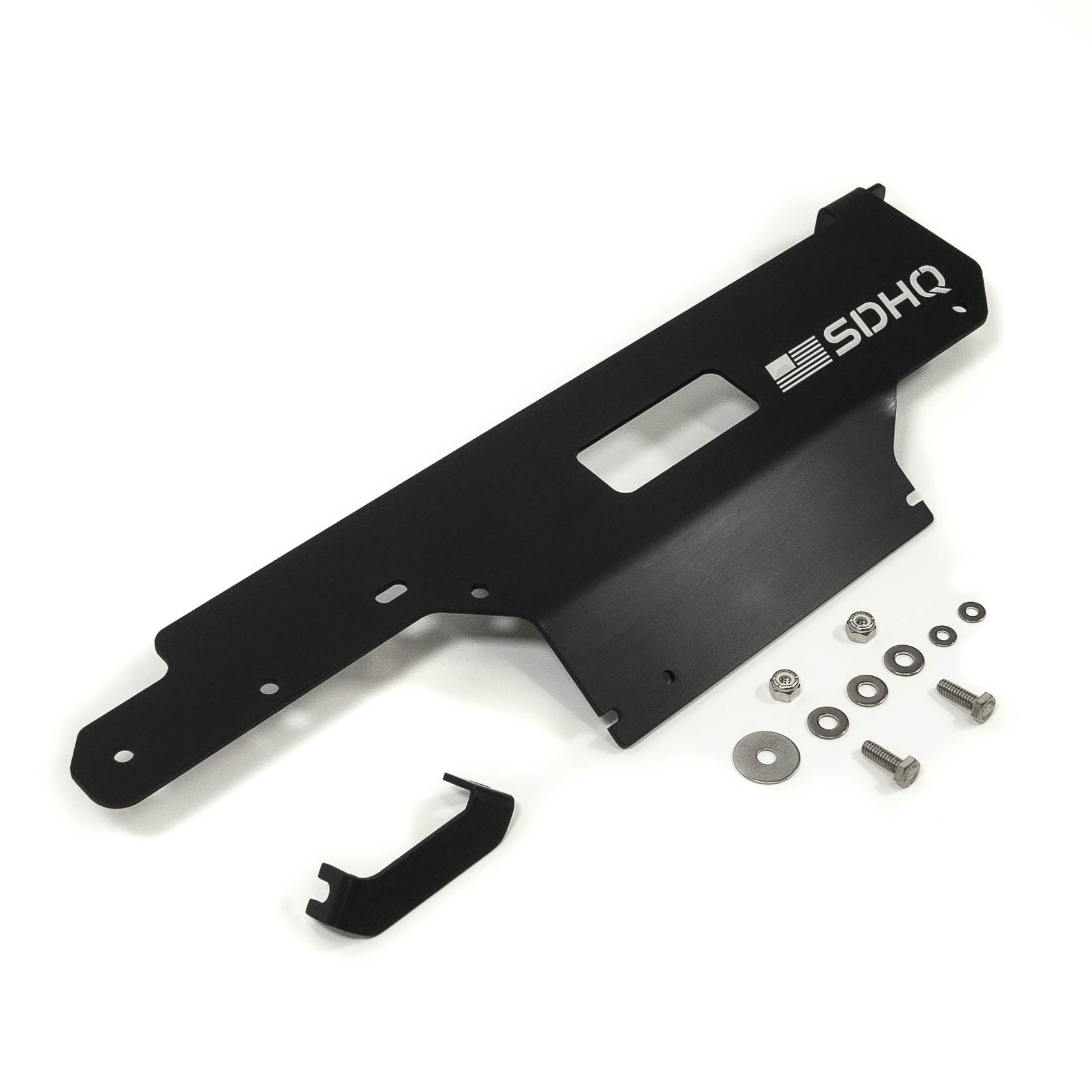

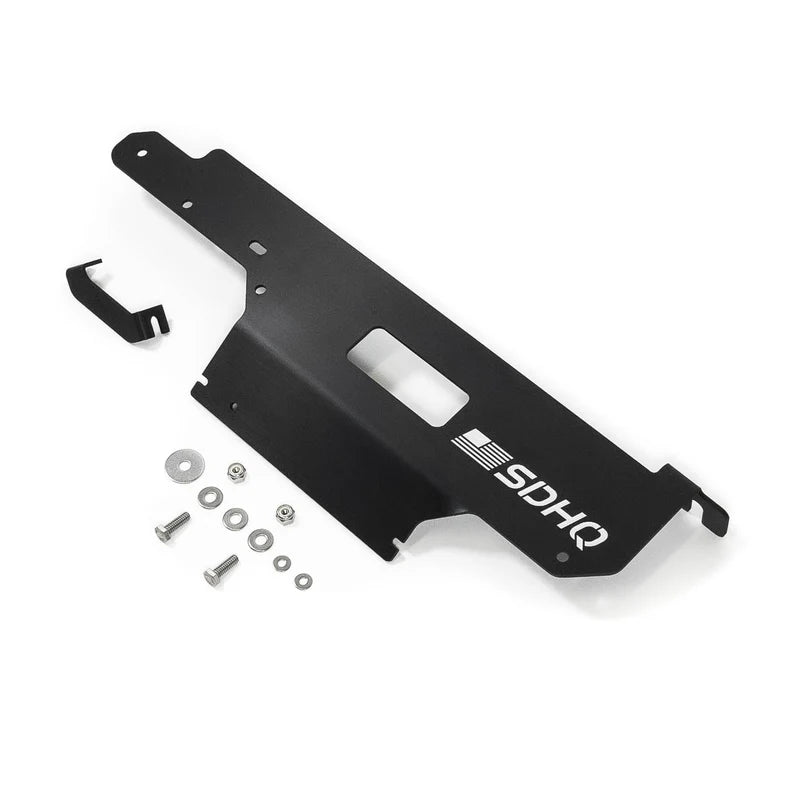

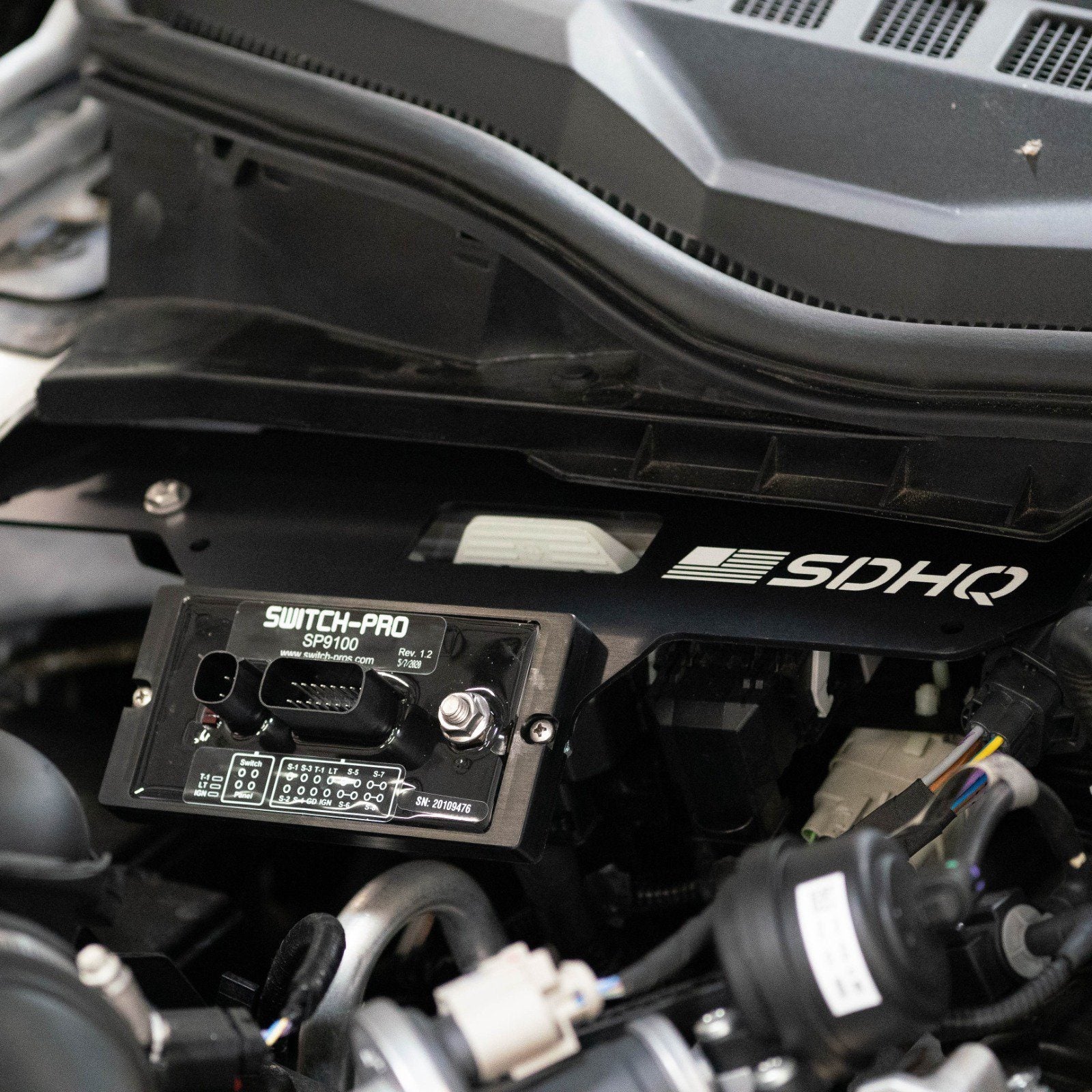

UNDER HOOD POWER MODULE MOUNT OVERVIEW
The SDHQ Built under the hood power module mount for the 2017-2023 Ford Raptor is engineered for a straightforward and elegant integration of the Switch-Pros systems into the Raptor's existing framework. This ensures that owners can upgrade their vehicle's control system without the hassle of an invasive installation process.
Vehicle Fitment:
- 2017-2020 (2nd Gen) Ford Raptor: Tailored to fit the second generation without any modifications.
- 2021-2024 (3rd Gen) Ford Raptor: Also designed to fit the newest generation Raptors, ensuring compatibility across several model years.
Key Features:
- Custom Design: The mount is designed with 3D CAD software, ensuring a perfect fit specific to the second and third-generation Ford Raptors.
- Preservation of Vehicle Integrity: The mount requires no cutting or drilling for installation, maintaining the vehicle’s structural integrity and resale value.

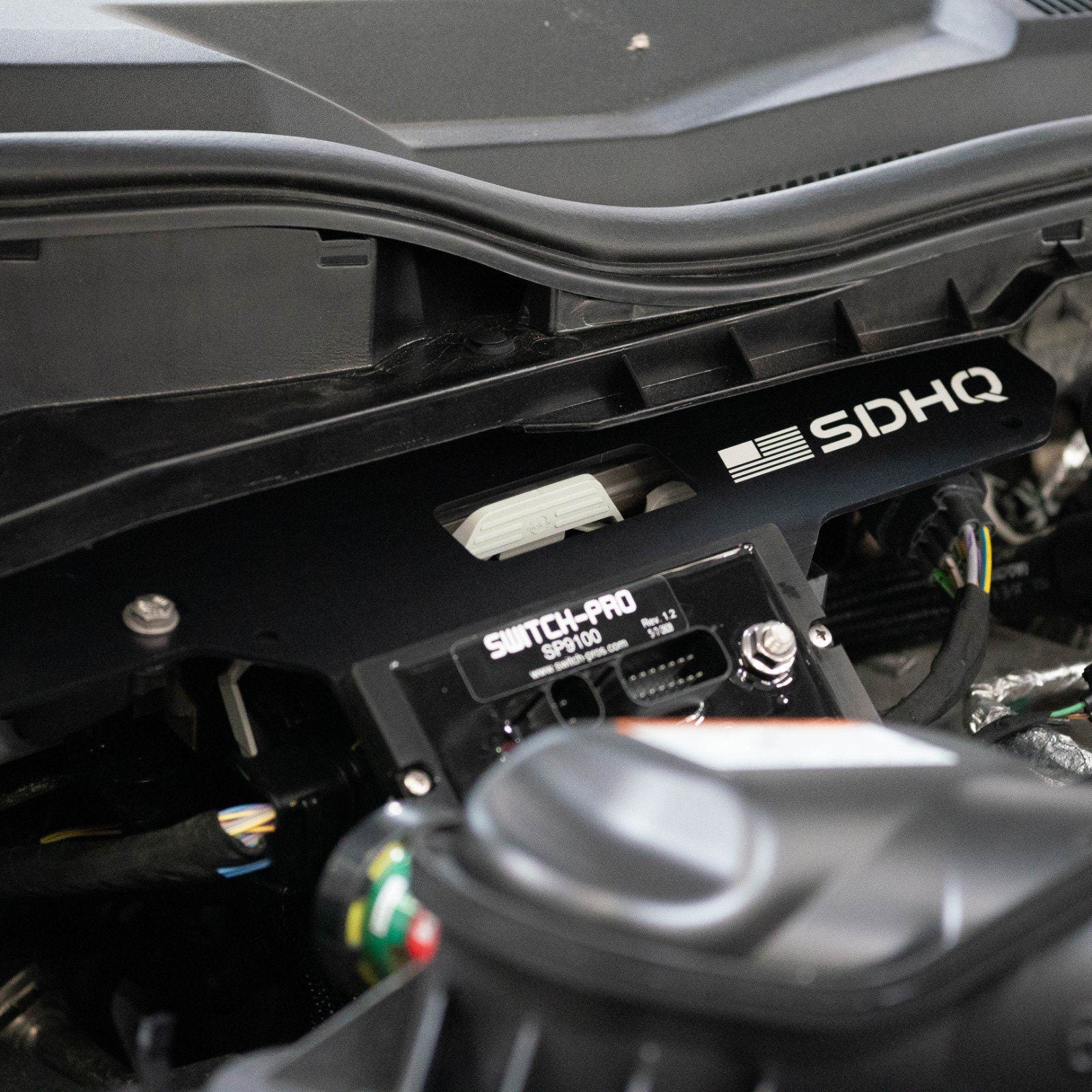

- Optimal Location: It is positioned above the PCM to provide ease of access and simplicity in wiring, allowing a clean and organized setup.
- Hardware Compatibility: It utilizes Switch Pros hardware, which ensures a secure fit and is designed to work with the system's components.
- Finish and Durability: The black anodized finish not only looks clean but also offers additional protection against corrosion.
Compatible Switch-Pros Products:
- Switch-Pros SP-9100: Fits the 8-button keypad system.

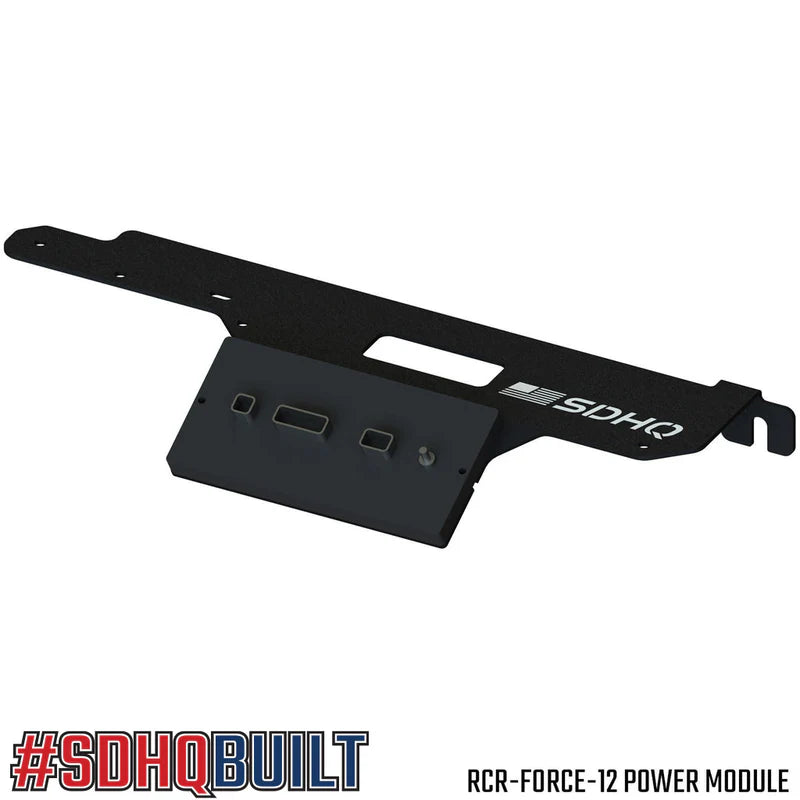

- Switch-Pros RCR-Force-12: Also accommodates the larger 12-button keypad system for those needing more controls.
Tech Info:
- Exclusion of Components: Note that the Switch-Pros components are not included with the mount and must be purchased separately.
- Dedicated Design: It is exclusively designed to work with Switch-Pros SP-9100 and RCR-Force-12 systems.
This mounting solution by SDHQ Built offers Ford Raptor owners a custom-fit, no-compromise option for enhancing their vehicle with Switch-Pros systems. By avoiding the need for any permanent alterations and providing a clean, organized installation, this mount is a compelling choice for those looking to maintain their vehicle's aesthetics while adding functional upgrades.
SWITCH PROS SP9100 Features
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOs or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting on power module
Specifications
- 125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H
- Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module
What’s Included?
- Switch Panel and Power Module
- RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide
