Overview

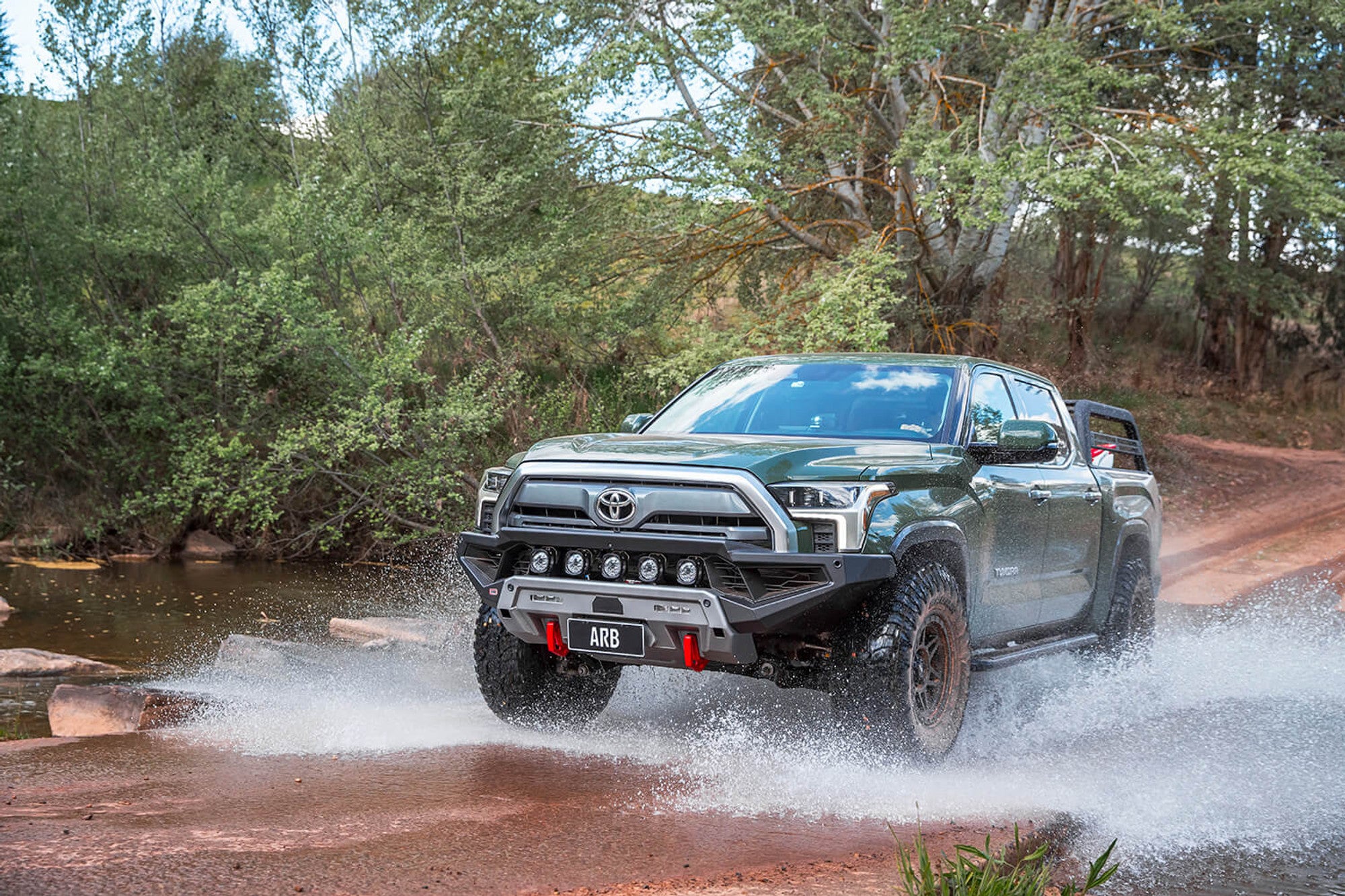

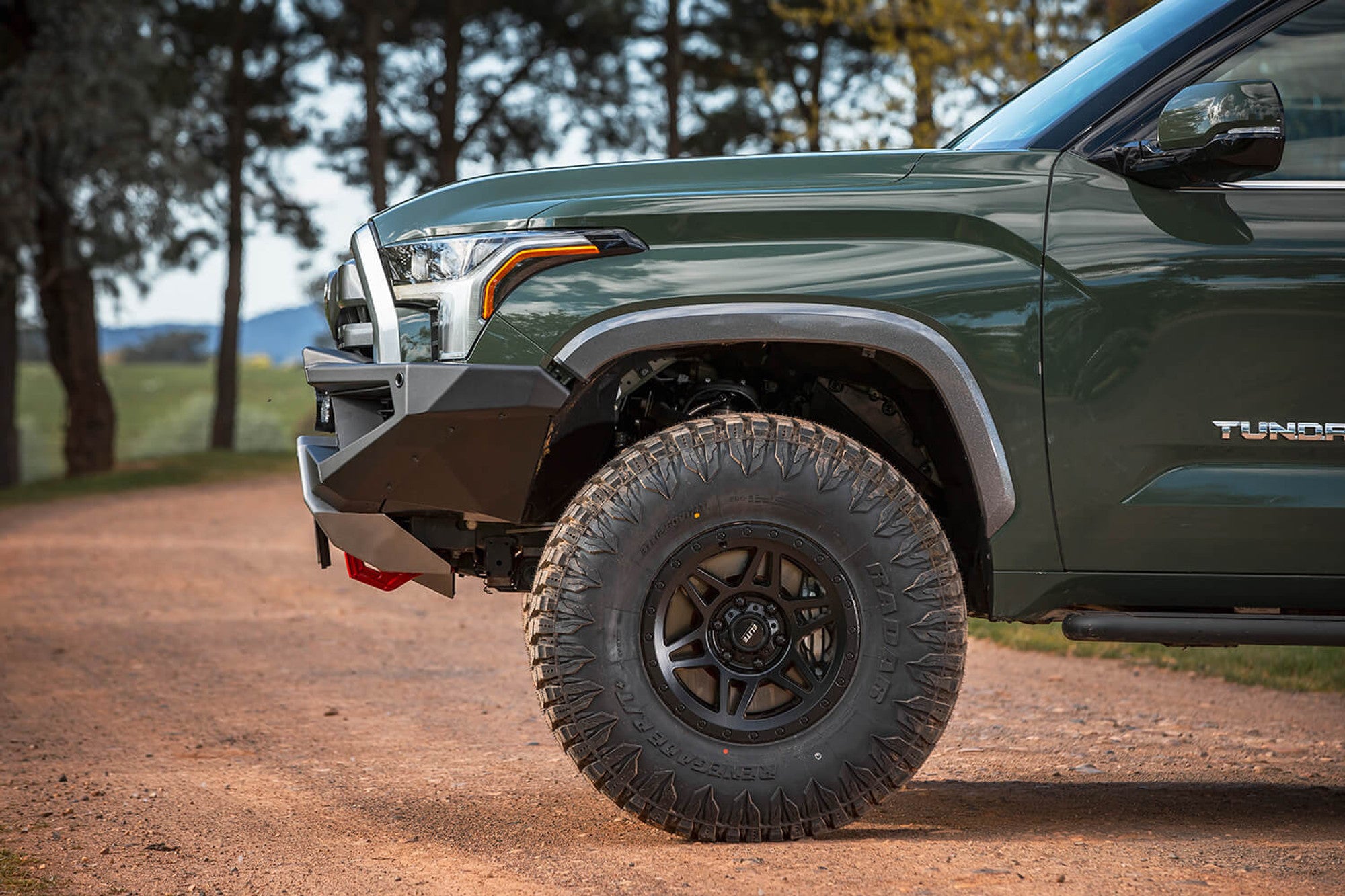

Bridging functionality and style, ARB’s Zenith Bumper turns heads whilst providing your vehicle with ARB’s industry-leading protection and performance. The Zenith is constructed from laser-cut and formed durable steel, finished with ecoat, meta prep and satin black powder coat for ultimate corrosion resistance.

Extensive design work has been undertaken to maximize strength and aesthetics in this new low profile design bumper. Engineers have integrated twin 17,637lbs (8t) rated recovery points into the Zenith bar making it a complete solution. The forged recovery points are shaped and formed to protect soft shackles and prevent point load on steel bow shackles, solving a common issue.

The Zenith boasts integrated front bash plates which, along with the wings and pans of the bumper to provide protection to vulnerable vehicle components. Functionally was top of mind when designing the Zenith, ensuring powertrain performance is not affected with the design ensuring maximum air flow to critical cooling systems. OEM fog lamps are utilized via dual apertures and the radar has been relocated, where required. Finally, the integrated winch cradle is compatible with most low mount winches up to 12,000lbs.

Features and Benefits:

• Two 8T rated recovery points. Engineered and integrated into the bumper, the recovery points are each rated to 17,637lbs (8T) and finished in red powder coat.
• Bash plates are also included with the Zenith bumper. With one heavy forged center piece and additional side bash plates for added protection on rugged terrain.
• Compatible with the OE fog lights (on applicable models).
• Slimline design profile, with minimal front overhang.
• Built-in winch cradle, the Zenith bumper is compatible with most low mount winches up to 12,000lbs.
• Unique to the Tundra is the press-form ducting in the wing panels. This is to direct airflow to the vehicle intercoolers, ensuring maximum performance.
• Compatible with factory Radar ADAS, Parking Sensors, and Airbag systems.
• Made from durable laser cut and formed 3mm steel for maximum strength-to-weight ratio, the Zenith is meta prep primed, and powder coated in a satin finish for corrosion resistance.
• A removable center grille allows for the install of up to seven 4in pod lights or lightbars up to 30in.
• Twin recessed recovery jack points on the front of the bumper to ensure safe and secure locations to perform a recovery. Compatible with ARB Jack and traditional farm jacks.

what's included:

• (x1) 3415260- Zenith Bumper
• (x1) 6178256- Zenith Bumper Fit Kit
• (x1) 6178433- Zenith Bumper Bash Plate Kit

Vehicle Fitment:

• 22-24 Toyota Tundra 1794 Edition
• 22-24 Toyota Tundra Capstone
• 22-24 Toyota Tundra Limited
• 22-24 Toyota Tundra Platinum
• 22-24 Toyota Tundra SR
• 22-24 Toyota Tundra SR5
