Description
PREMIUM AFTERMARKET FOG LIGHTS:

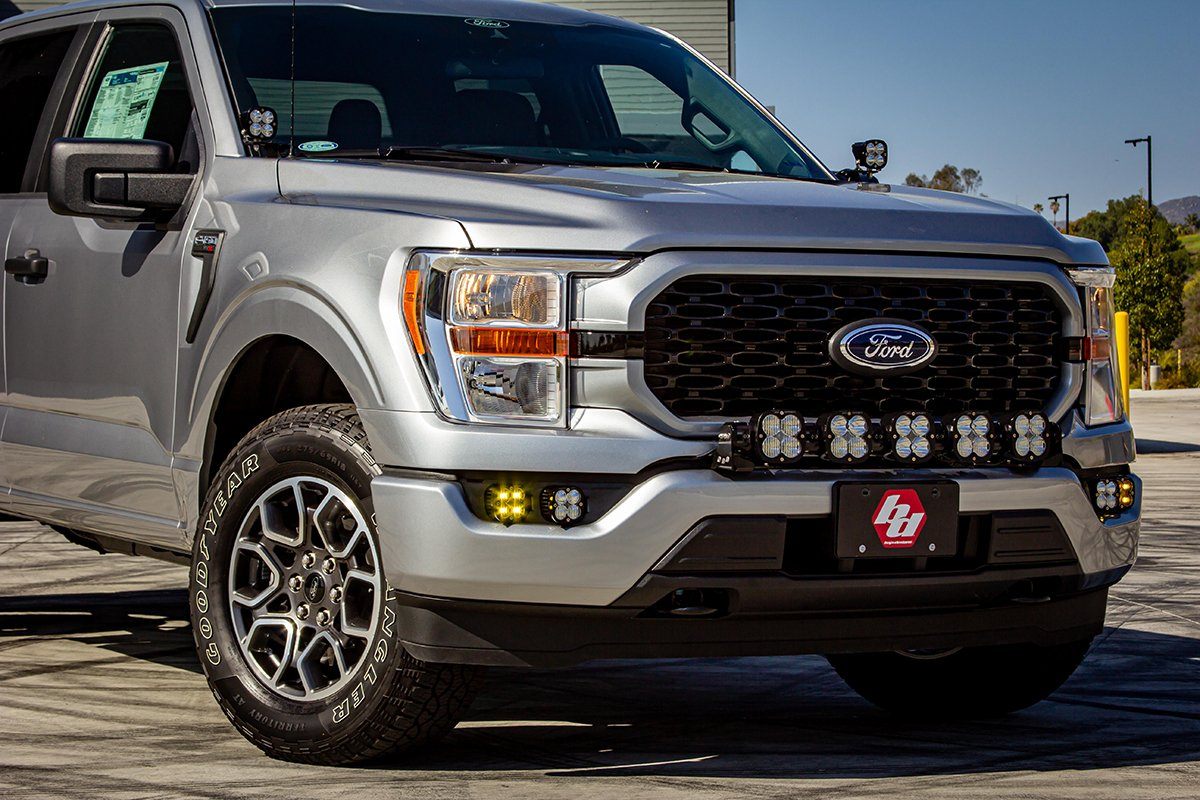

This LED fog light kit from Baja Designs is perfect if you are looking to spice up your 2021-2023 Ford, F150 with a premium aftermarket fog light LED lighting kit. This fog light kit specifically utilizes a set of Baja Designs' Squadron Amber or Clear SAE and a set of Squadron Pro LED lights in driving combo lens pattern.
This kit also includes powder coated fog pocket brackets, stainless-steel hardware as well as our custom harness. One pair of Squadrons will be operable off your OEM fog light switch, and both pairs of Squadrons can be turned on with our provided toggle or upfitter switch harness.
PRODUCT OPTIONS:
| Part Number | Wiring/Harness Style | SAE Lens Color | |
|---|---|---|---|
447700 | Toggle Switch | Amber SAE | |
447699 | Toggle Switch | Clear SAE | |
447700UP | Upfitter | Amber SAE | |
447699UP | Upfitter | Clear SAE |

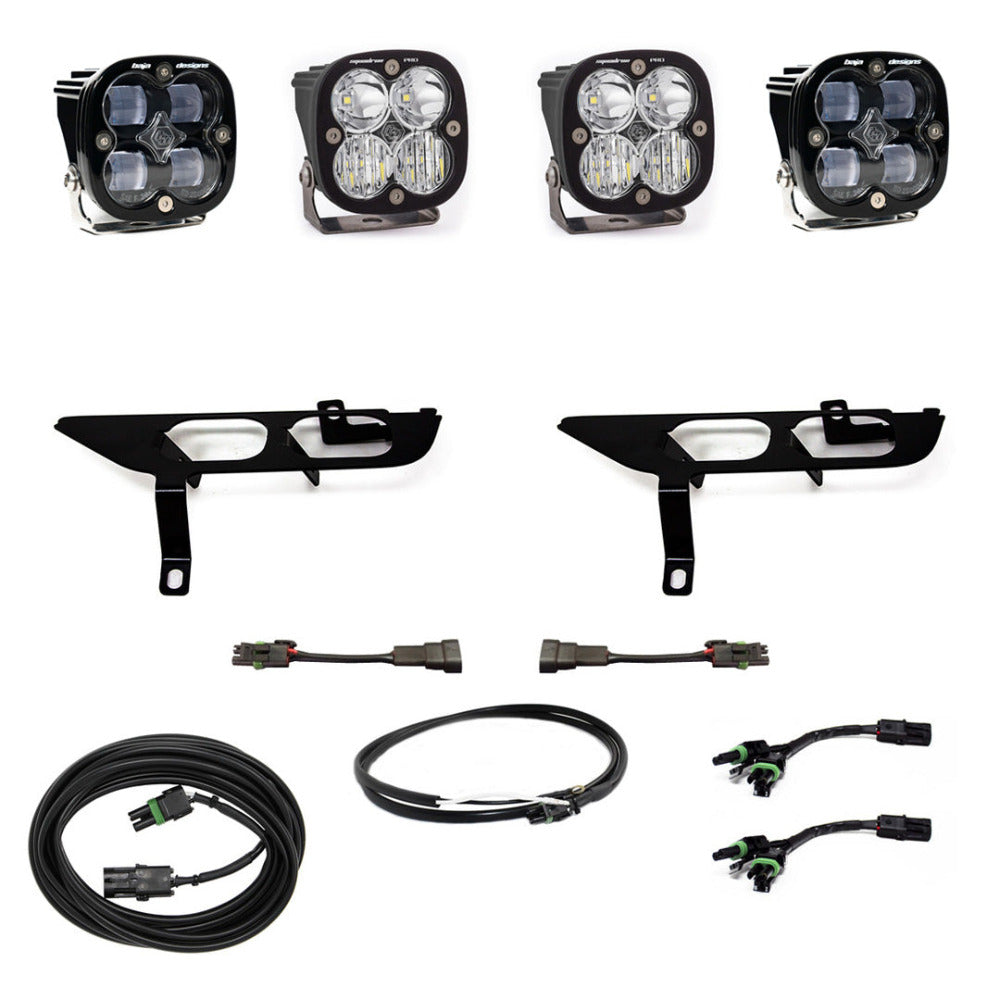

WHAT'S INCLUDED:
- Squadron Pro, Driving/Combo Pair
- Squadron SAE, Amber or Clear, Wide Cornering Beam Pattern
- x2 Fog Pocket Brackets
- x2 Wire Adapters
- x1 Upfitter Harness or Toggle Harness (see product options)
- x2 55" Splitters
- x2 small Splitters
SPECS (SQUADRON SAE):
- Lumens: 2,480 Utilizing 4 LEDs
- Wattage/Amps: 22W / 1.6A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
SPECS (SQUADRON PRO):
- Lumens: 4,600 Utilizing 2 types of Cree LEDs
- Wattage/Amps: 40W / 2.90A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
WIRING OPTIONS:
In the product options you can select what style of wiring option you want either toggle switch or upfitter
- TOGGLE SWITCH/NON-UPFITTER OPTION: The included wiring harness is a rocker switch style that can be activated inside the cab of the vehicle.
- UPFITTER OPTION: The included wiring harness is an upfitter style designed to be tied into either your vehicles factor upfitter system or a Switch-Pros unit.
