THE SUPERIOR LIGHTING SOLUTION:

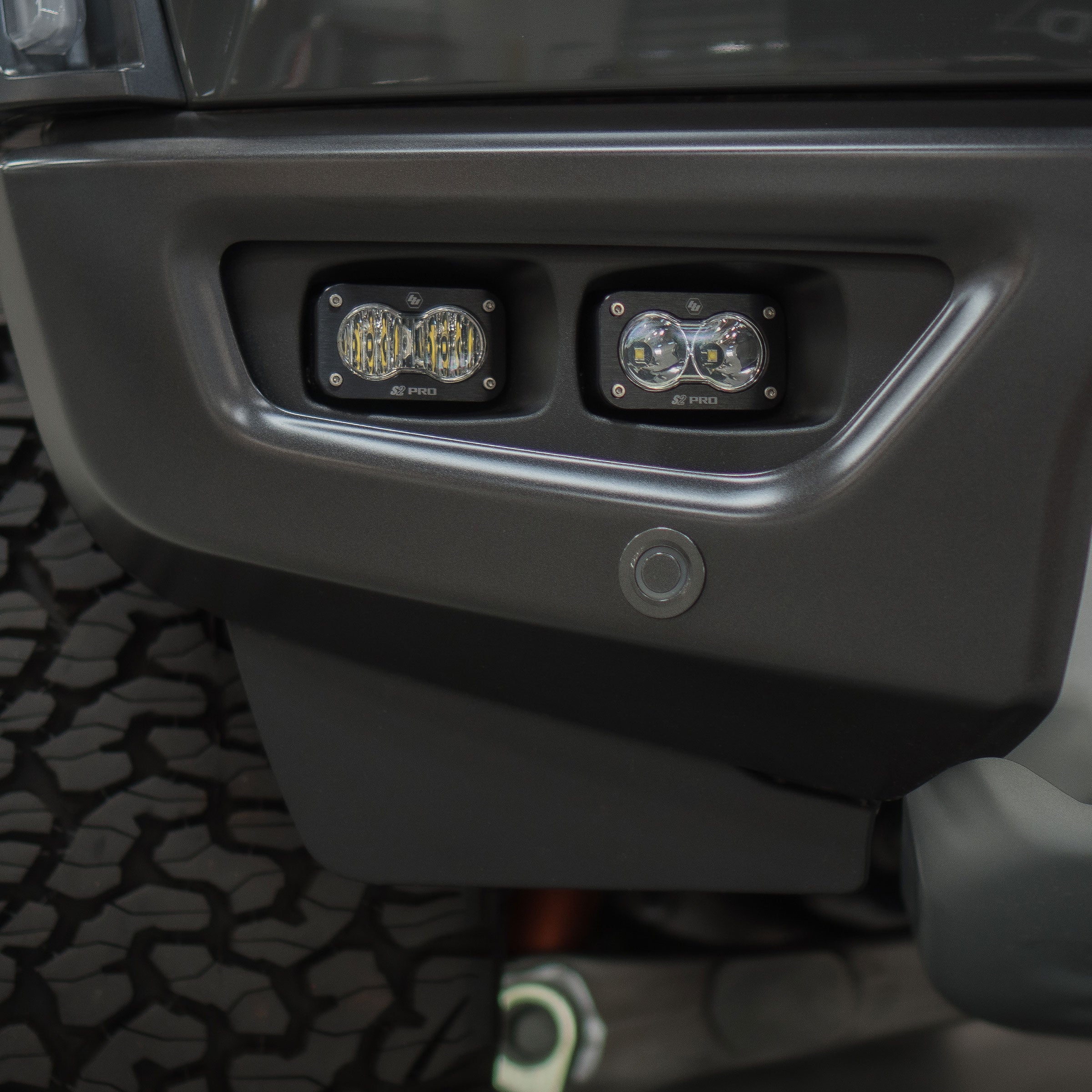

The Ford Raptor is a great platform to plan your next adventure around which is why Baja Designs thought it might be necessary to offer enthusiasts a superior LED lighting solution. This lighting kit includes two pairs of S2 Pro LED auxiliary lights in both Spot and Wide Cornering configuration. The accessories included in this kit are plug and play style adapters, four black S2 rock guards, S2 amber lenses and fog light brackets.

VEHICLE FITMENT:

2021-2024 Ford Raptor

SPECS:

• Lumens: 2,450 Utilizing 2 LEDs
• Wattage/Amps: 24W / 1.70A
• Dimensions: 2.93" x 1.76" x 1.68"
• Weight: 8 ounces
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

WHAT'S INCLUDED:

• x2 S2 Pro, Spot
• x2 S2 Pro, Wide Cornering
• x8 Mounting Brackets
• x2 S2 Wide Cornering Amber Lens
• x2 S2 Spot Amber Lens
• x4 Black S2 Rock Guard
• x2 Harness Adapter
• All necessary hardware

BEAM PATTERNS:

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
• Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
• Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
