BEHIND THE GRILLE KIT:

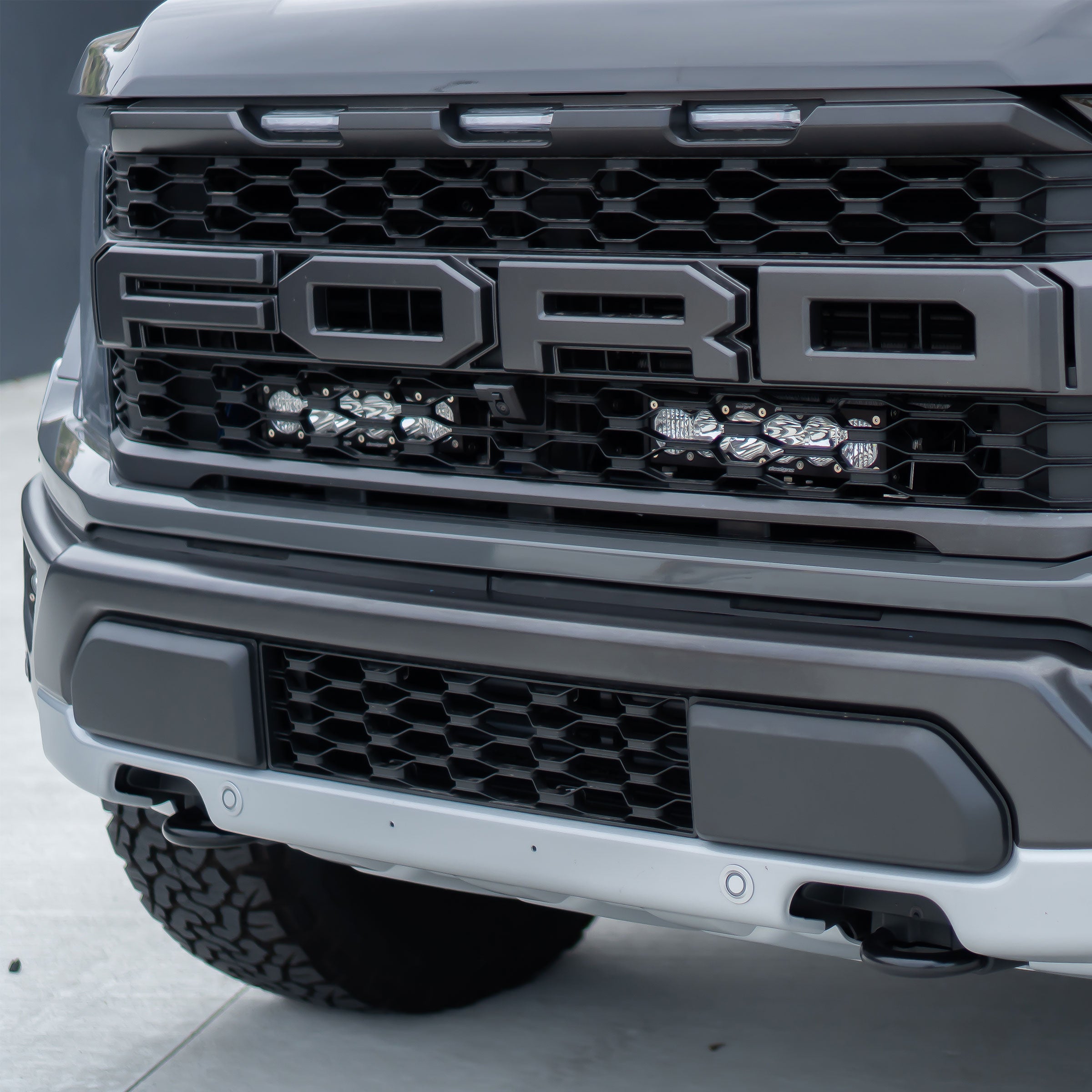

Baja Designs' 2021-2024 Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers two (Amber or Clear Lens) 10" OnX6+ LED light bars, mounting brackets, and hardware. To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.

VEHICLE FITMENT:

2021-2024 Ford Raptor

SPECS:

• Lumens: (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
• Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
• Dimensions: 10" x 4.29" x 2.69"
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

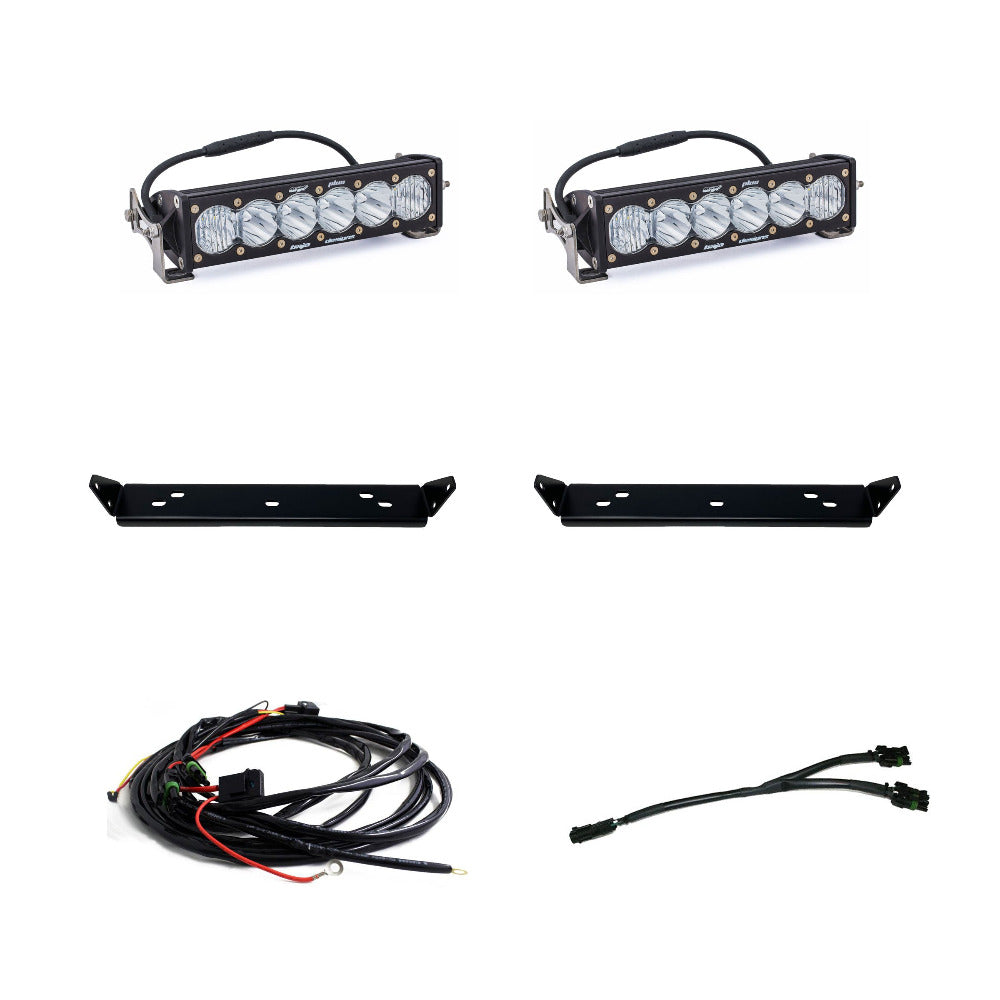

WHAT'S INCLUDED:

• x2 Amber or clear OnX6+ 10" in Driving Combo (see product options)
• x1 Wiring Harness
• x1 Wiring Harness Splitter
• x2 Mounting Brackets
• All necessary hardware

BEAM PATTERNS:

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
• Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
• Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
