ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed shocks, coilovers and complete suspension system for 2024 Lexus GX550. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios.

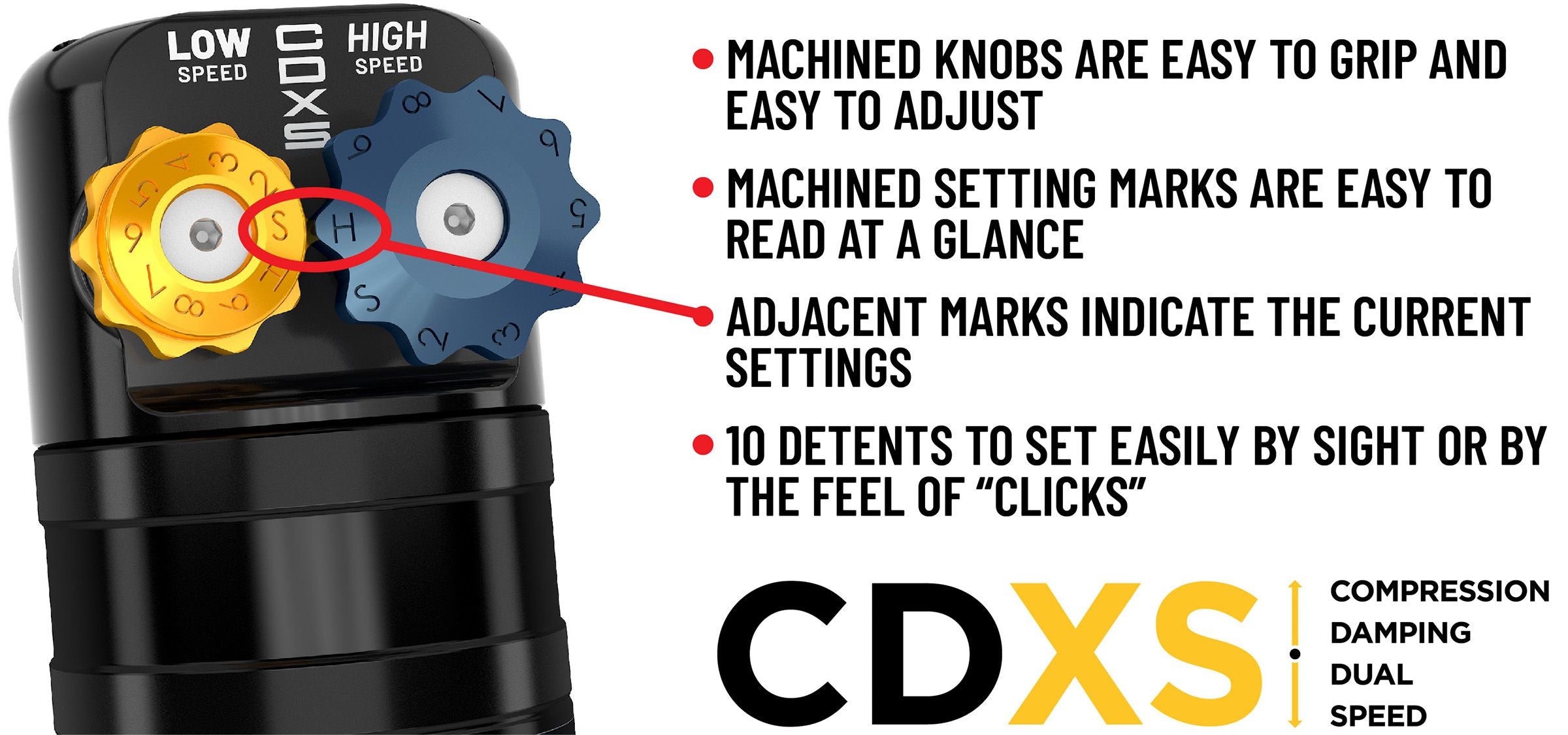

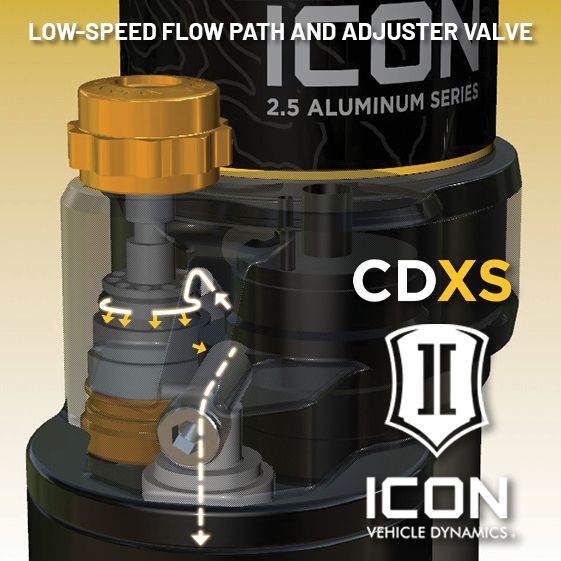

With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios.

KEY FEATURES:

• Shocks & Coilovers equipped with CDXS for independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness.
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular or Billet rear upper and lower links improve rear end articulation and allow for pinion angle adjustment. Billet links feature on-vehicle adjustability
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers


SYSTEMS INCLUDE:

• 58790X: 24 GX550 FRONT 2.5 VS RR CDXS COILOVER KIT
• 58452DJ: 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or  58552DJ: 24 TACOMA/LC250/GX550 BILLET UCA DJ PRO KIT
• 55156: 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752: 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870XP: 24 LC250/24 GX550 0-3" REAR 2.5 VS CDXS RR PAIR
• 54202: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T: 24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or  54003: 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
• 54102T: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
   or  54102: 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• 55161: 24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT
